2015 new Victory Magnum photo's & video

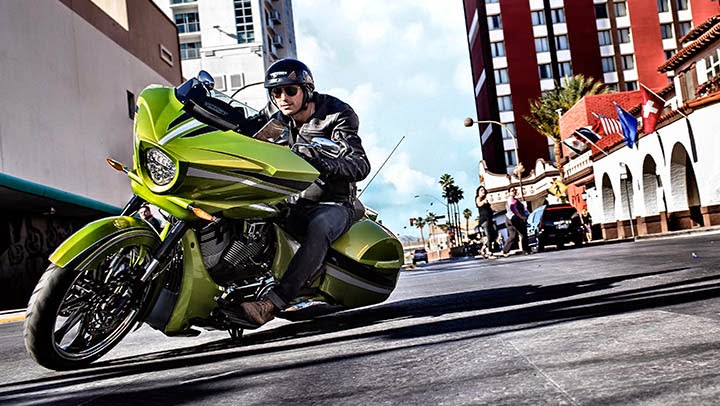

2015 Victory Magnum Bagger


Envy comes standard. Life goes fast – make a lasting impr ession on the new Victory Magnum, our boldest bike to ever roll off the line. This big wheel bagger has the performance to turn heads, along with the style and sound to make people stop, stare, and listen. It ’s got a 21-inch wheel, slammed back-end, custom paint, and our best performing sound system ever — EVER ! Even sitting still, the Victory Magnum is never idle. Wherever it goes, it can’t be ignored.




Specifications

Dry Weight760 lbs / 345 kg
Displacement106 ci / 1731 cc
Oil Capacity5.0 qts / 4.73 ltr





Specifications

Dry Weight760 lbs / 345 kg
Displacement106 ci / 1731 cc
Oil Capacity5.0 qts / 4.73 ltr

ENGINE & DRIVETRAIN

Battery12 volts / 18 amp hours
Charging System48 amps max output
Compression Ratio9.4 : 1
CoolingAir / oil
Drive/Driven ClutchWet, multi-plate
ExhaustSplit dual exhaust with crossover
Fuel SystemElectronic Fuel Injection with dual 45mm throttle body
Transmission Type6-speed overdrive constant mesh
Transmission/Final DriveCarbon Fiber Reinforced Belt
Transmission/Primary DriveGear drive with torque compensator
Valve TrainSingle overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
Bore x Stroke (mm)101 x 108 mm
Engine Type4-stroke 50° V-Twin

Suspension

Front SuspensionInverted cartridge telescopic fork, 43 mm diameter, 5.1 in / 130 mm travel
Rear SuspensionSingle, mono-tube gas, cast aluminum with constant rate linkage, 4.7 in / 120 mm travel, air adjustable

Brakes

Brake System TypeConventional w/ optional ABS
Front BrakesDual 300mm floating rotor with 4-piston calipers
Rear Brakes300mm floating rotor with 2-piston caliper

Tires / Wheels

Front Tires120/70R21 Dunlop Elite 3 Front
Front Wheel21 x 3.5" Front
Rear Tires180/60R16 Dunlop Elite 3
Rear Wheel16 x 5.0"

DIMENSIONS

Fuel Capacity (gallons/liters)5.8 gal / 22 ltr
GCWR1360 lbs / 618 kg
Ground Clearance5.8 in / 148 mm
Rake/Trail29.0° / 5.6 in / 142 mm
Seat Height26.3 in / 667 mm
Wheelbase65.7 in / 1670 mm
Overall Length (in./cm.)104.3 in / 2650 mm

Features

ColorsMetasheen Black over Super Steel Gray, Magnum Red over Super Steel Gray, Ness Midnight Cherry, Plasma Lime with Silver
